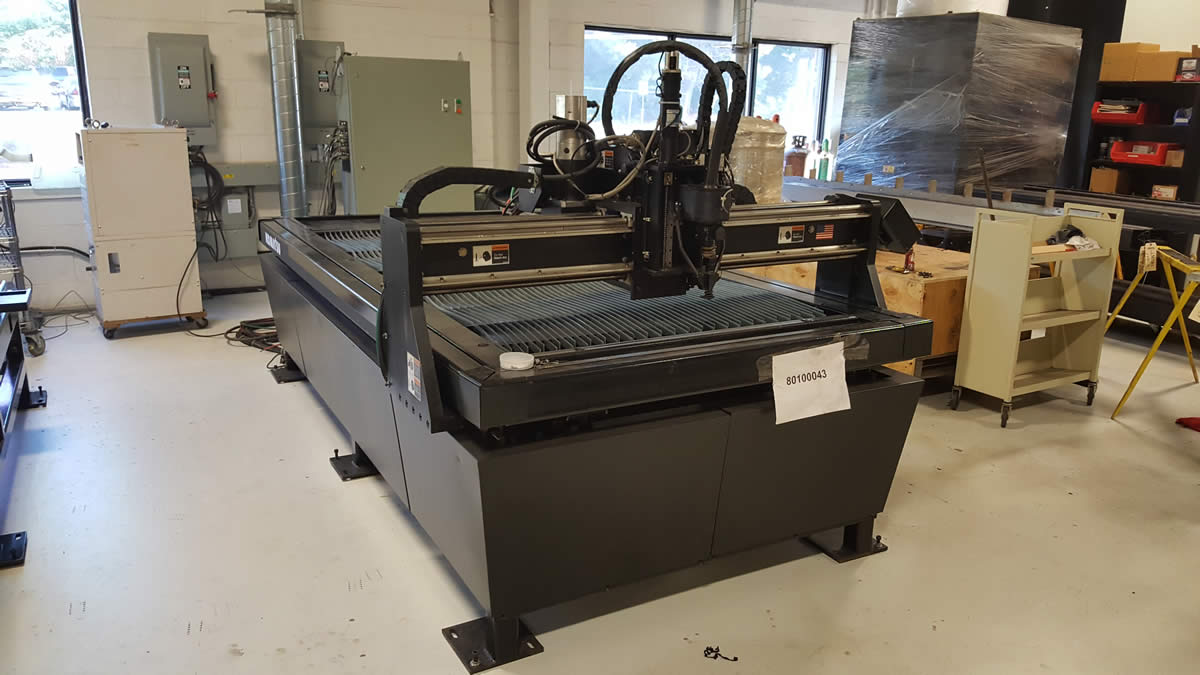

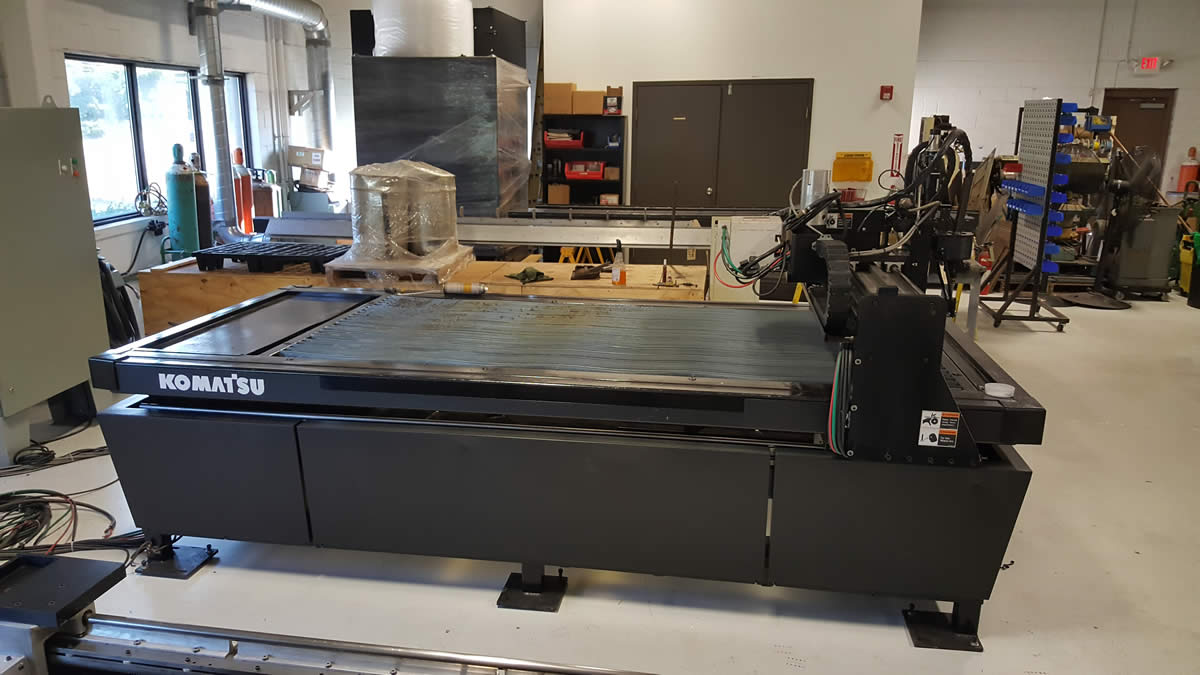

Refurbished Komatsu KCR0448

• Maximum Cutting Width: 4′
• Maximum Cutting Length: 8′
• Mild Steel Capacity: 0.028″-0.25″
• Aluminum Capacity: 0.028″-0.187″
• Stainless Steel Capacity: 0.028″-0.187″
• Minimum Kerf Width: 0.031″
• Cutting Speed Range: 30-300 IPM
• Rapid Traverse Speed: 500 IPM
• Variable Cutting Current: 3-40 Amps.
• Plasma Power Unit: Komatsu G940-I
• Plasma Power Poser Requirements: 230 volt/3 phase 50/60Hz – 11.0 KVA
• Control Unit: LCD Display, Alpha-Numeric, Keypad, Joystick
• Machine (CNC) Power Requirements: 120 volt/single phase, 50/60 Hz
• Torch Height Control: Inner logic RSVP 101
• Machine Weight: 3200 Lbs.
• Floor Space Requirements: 7′ x 14′

Features:

•     Factory rebuilt and recertified in 2020.
•     Welded box beam construction, Open Bridge
•     Dual side rack and pinion
•     Simple alpha numeric joystick control with parameter input
•     Parameter storage for cutting conditions
•     Positional accuracy +/- 0.004 in., repeatability 0.002 in.
•     Magnetic field to control plasma arc column
•     Torch height control with setup probe
•     Pierce height accuracy +/- .015 inches
•     Tested and verified machine accuracy
•     Simple consumables setup, 1 electrode, 3 nozzle sizes
•     Bevel angle +/- 2 degrees

Included:

• Rasor Server for Windows – DNC Software
• PathMaster – part drawing software, DXF import
• Rasor Nest – nesting software
• 6 Months warranty
• Installation & training (1 WEEK)
• Consumable starter kit (approx. 1-month stock)
